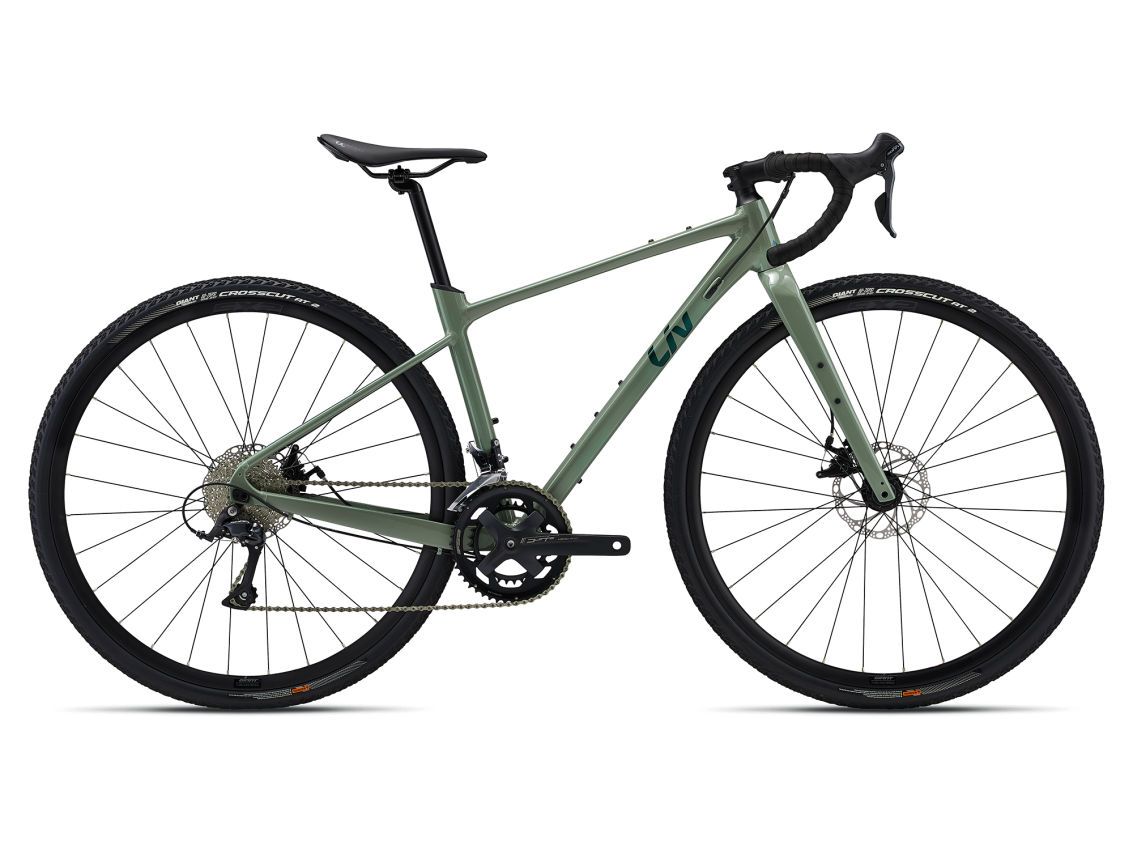

THE DEVOTE WAS DESIGNED TO SATISFY YOUR GRAVEL WANDERLUST. BALANCING PERFORMANCE AND RUGGEDNESS, THIS VERSATILE BIKE IS READY FOR ANYTHING FROM SHORT CUTS THROUGH THE WOODS TO LONG, WINDING TRAILS, AS WELL AS CRUSHING YOUR FIRST GRAVEL RACE.
KEY PERFORMANCE FACTORS
Lightweight and Sleek
The durable yet lightweight ALUXX-grade aluminum frame with an Advanced-grade composite fork offer a smooth and forgiving ride, handy when you find yourself on the road less traveled. The redesigned geometry puts you in a more performance-oriented position and gives you added control whether you’re picking up speed or detouring downhill to the swimming hole.
Superior Comfort and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction.
HIGHLIGHTS
ALUXX-GRADE ALUMINUM FRAME
The frame, built from high-strength, lightweight aluminum, guarantees efficient power transfer, converting your effort into speed and offering a ride that's as durable as it is responsive.
ADVANCED-GRADE COMPOSITE FORK
The fork is constructed from high-performance grade raw carbon material in our own composite factory, providing exceptional strength and lightweight performance for greater power transfer, agility, and efficiency.
OVERDRIVE
Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. Featuring oversized headset bearings made of stainless steel for added longevity, along with a tapered steerer tube, this system delivers the ideal balance of steering stiffness and responsiveness.
D-FUSE TECHNOLOGY
Proprietary D-shaped composite seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, resulting in a smoother, more compliant ride quality.
SEATPOST COMPATIBILITY
The Devote is compatible with multiple seatpost options, including D-Fuse and round seatposts in 30.9mm or 27.2mm sizes, allowing you to tailor the bike to your riding style.
MULTIPLE WATER BOTTLE MOUNTS
The Devote features three sets of frame mounts, allowing you to carry multiple water bottles and ensuring easy access to hydration during long rides or bike-packing expeditions.
ADDITIONAL FRAME MOUNTS
Discover added versatility with top tube mounts for secure bag attachment, fork mounts for accessory integration, and fender mounts to ward off debris and water.
DISC BRAKE INTEGRATION
The frame and fork are engineered specifically for flat-mount disc brakes, including front and rear 12mm thru-axles for reliable braking performance in all weather and road conditions.
GIANT TUBELESS WHEELSET
The Giant tubeless wheelset delivers enhanced performance and a smoother ride through its innovative tubeless design, minimizing puncture risk and optimizing rolling efficiency.
TECHS & FEATURES
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
-
- XS
-
150 cm
163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 175 cm
-
- L
-
170 cm 181 cm
| XS | S | M | L | ||
|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | SEAT TUBE LENGTH (mm) | 390 | 420 | 465 | 500 |
| B | SEAT TUBE ANGLE | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° |
| C | TOP TUBE LENGTH (mm) | 525 | 525 | 535 | 535 | 545 | 545 | 555 | 555 |
| D | HEAD TUBE LENGTH (mm) | 90 | 110 | 140 | 160 |
| E | HEAD TUBE ANGLE | 70.0° | 69.9° | 70.5° | 70.4° | 71.0° | 70.9° | 71.0° | 70.9° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 78.4 | 82 | 75 | 78.5 | 71.6 | 75.1 | 71.6 | 75 |
| H | WHEELBASE (mm) | 1017 | 1027 | 1024 | 1034 | 1031 | 1041 | 1043 | 1052 |
| I | CHAIN STAY LENGTH (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| J | BOTTOM BRACKET DROP (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K | STACK (mm) | 523 | 524 | 544 | 545 | 574 | 575 | 593 | 594 |
| L | REACH (mm) | 380 | 379 | 384 | 383 | 386 | 385 | 391 | 389 |
| M | STAND OVER HEIGHT (mm) | 681 | 688 | 708 | 715 | 748 | 755 | 779 | 786 |
| N | HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 |
| O | STEM LENGTH (mm) | 50 | 60 | 70 | 80 |
| P | CRANK LENGTH (mm) | 165 | 170 | 172.5 | 172.5 |
| Q | WHEEL SIZE | 700 | 700 | 700 | 700 |
-
SizesXS, S, M, L
-
ColoursShale Green
-
FrameALUXX-grade aluminum, 12x142mm thru-axle, flat mount disc, flip chip – dropout
-
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, flat mount disc
-
ShockN/A
-
HandlebarGiant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm
-
Gripscork tape with gel
-
StemGiant Contact, +/- 8 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm
-
SeatpostGiant Contact D-Fuse, alloy, 14mm offset
-
SaddleLiv Approach
-
PedalsN/A
-
ShiftersShimano Sora, 2x9
-
Front DerailleurShimano Sora
-
Rear DerailleurShimano Sora, long cage
-
BrakesTektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
-
Brake LeversShimano Sora
-
CassetteShimano HG400, 11x34
-
ChainKMC X9 with Missing Link
-
CranksetFSA Vero Pro, 32/48 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
-
Bottom BracketFSA. cartridge
-
RimsGiant S-X2 Disc wheelset, alloy
-
HubsGiant alloy, 12mm thru-axle
-
Spokesstainless
-
TiresGiant CrossCut AT 2, 700x38c, tubeless
-
Extras53mm max tire size in long flip chip position, 45mm max tire size in short flip chip position, tubeless prepared, ISC clamp
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
All prices and specifications are subject to change without notice.
