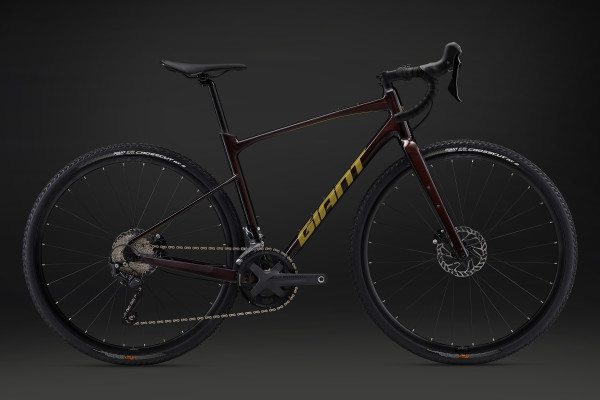

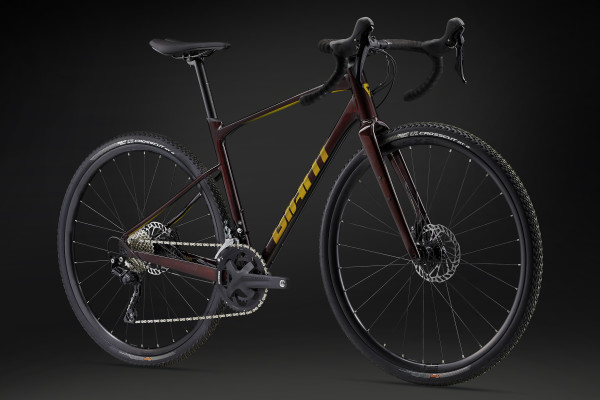

RIDE ROADS, GRAVEL OR DIRT WITH THIS VERSATILE ALUMINUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.
KEY PERFORMANCE FACTORS
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance

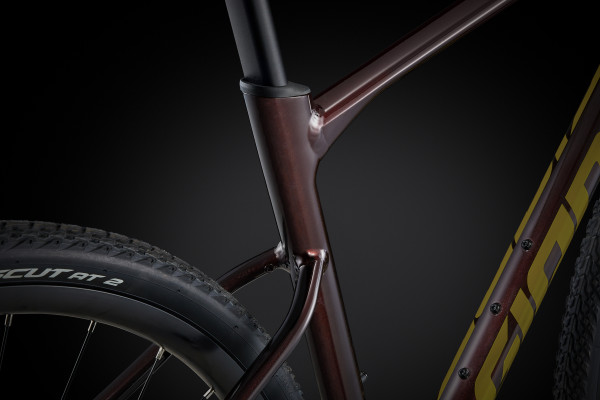

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
TECHS & FEATURES
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
-
- XS
-
155 cm
166 cm
-
- S
-
159 cm 171 cm
-
- M
-
169 cm 181 cm
-
- ML
-
174 cm 186 cm
-
- L
-
179 cm 191 cm
-
- XL
-
189 cm 200 cm
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | SEAT TUBE LENGTH (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D | HEAD TUBE LENGTH (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E | HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H | WHEELBASE (mm) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| I | CHAIN STAY LENGTH (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| J | BOTTOM BRACKET DROP (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K | STACK (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L | REACH (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M | STAND OVER HEIGHT (mm) | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| N | HANDLEBAR WIDTH (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
| O | STEM LENGTH (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
-
SizesXS, S, M, M/L, L, XL
-
ColoursCordovan
-
FrameALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
-

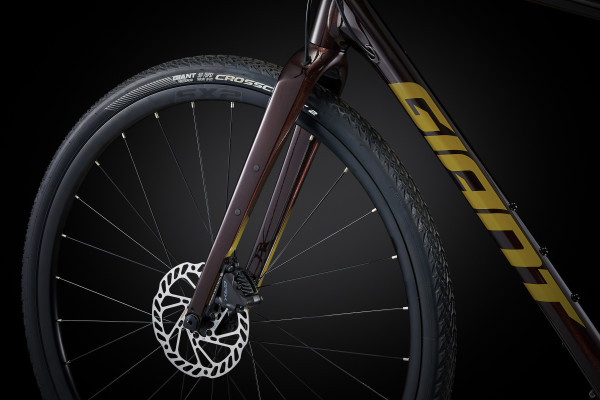

ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
ShockN/A
-

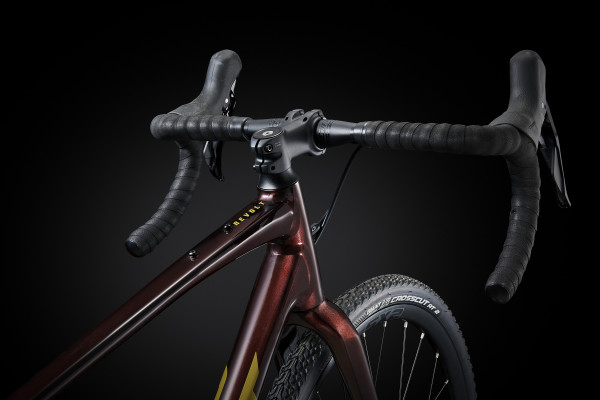

HandlebarGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
Gripscork tape with gel
-
StemGiant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
SeatpostGiant D-Fuse, alloy, 14mm offset
-
SaddleGiant Approach
-
PedalsN/A
-
ShiftersShimano GRX RX-400, 2x10
-
Front DerailleurShimano Tiagra
-
Rear DerailleurShimano GRX RX-400
-
BrakesShimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake LeversShimano GRX RX-400 hydraulic
-
CassetteShimano HG500, 11x34
-
ChainKMC X10 with Missing Link
-

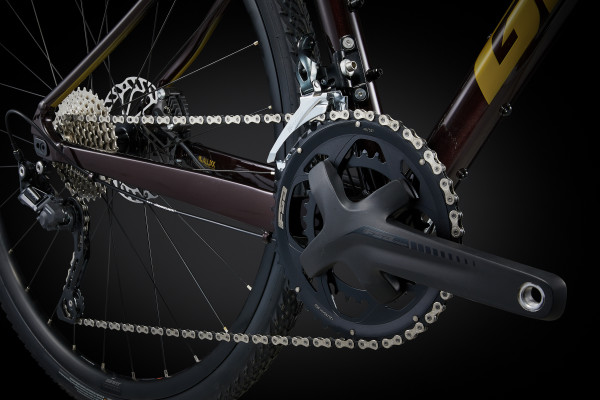

CranksetFSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom BracketFSA Mega EXO
-
RimsGiant S-X2 Disc wheelset, alloy
-
HubsGiant alloy, 12mm thru-axle
-
Spokesstainless
-
TiresGiant CrossCut AT 2, 700x38c, tubeless
-
ExtrasTubeless prepared, 45mm max tire size in "long" flip chip position, 40mm max tire size in "short" flip chip position (due to Tiagra F.Der. arm clearance)
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
All prices and specifications are subject to change without notice.
